Welcome to the first installment of our journey into the incredible world of control theory! If that phrase sounds a little intimidating, don’t worry. You might picture complex equations on a dusty chalkboard or the inside of a NASA command center. And while control theory is definitely the rocket science that gets us to space, it’s also something much more fundamental. It’s a way of thinking, a set of principles that govern everything from how you ride a bike to how your favorite video game character moves.
Over the next twelve parts, we’re going to pull back the curtain on this “secret brain” that powers so much of our modern world. We’ll start with the basics, build up our understanding with simple analogies, and put it all into practice by building and programming our very own four-wheeled mecanum robot—a bot that can glide in any direction as if by magic.
Ready? Let’s dive in.
You’re Already a Control Systems Expert (You Just Don’t Know It Yet)

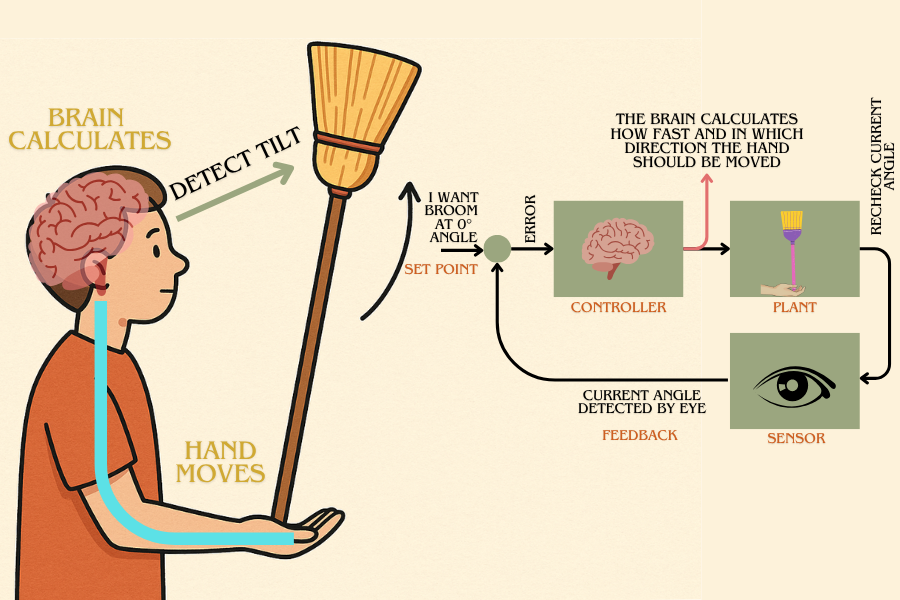

Let’s start with a simple experiment. Find a broom, a long ruler, or even a pencil. Now, try to balance it upright on the palm of your hand.
What are you doing, exactly? Your eyes are watching the top of the broom, constantly checking if it’s starting to tilt. The instant it leans, that information zips to your brain. Your brain, in a flash, calculates where your hand needs to move to counteract the tilt. It then sends a signal to the muscles in your arm, and your hand moves. If you overcorrect, the broom tilts the other way, and the whole process repeats, faster than you can even think about it.
Congratulations, you’ve just created and operated a sophisticated, real-time feedback control system.
This is the core idea of control theory: influencing the behavior of something to achieve a desired goal. In engineering terms, the “something” you’re trying to control—the broom—is called the plant or the system. Your goal—keeping the broom perfectly upright—is the reference or setpoint. The constant loop of watching, thinking, and acting is called a feedback loop.
You do this all the time. When you adjust the shower knob to get the water temperature just right, you’re running a control loop. Your skin is the sensor, your brain is the controller, and your hand turning the knob is the actuator. When you steer a bicycle to stay upright, you’re a control system. This intuitive, constant dance of observation and correction is not some alien concept; it’s a fundamental part of how we interact with the world. Control theory is simply the science of understanding this dance and teaching machines to do it, too.
From Showers to Spacecraft
Once you start looking for them, you’ll see control systems everywhere. They are the invisible intelligence that makes our world safer, more comfortable, and more efficient.
Think about the cruise control in a car. You set your desired speed to 65 mph. That’s the reference. A sensor constantly measures the car’s actual speed. If you start going up a hill, the speed drops. The controller sees this difference—this error—and tells the engine to give it more gas to get back to 65 mph. When you go downhill, it does the opposite. This is a classic closed-loop control system, a huge improvement over just locking the throttle in one position and hoping for the best.
Your home is filled with them. A thermostat doesn’t just turn the heat on; it measures the room’s temperature, compares it to your setpoint, and turns the furnace on or off to keep the temperature stable. An air conditioner, a refrigerator, and even a modern toaster that uses sensors to get the perfect brownness are all running on these principles.
But it doesn’t stop there. Control theory is a massively interdisciplinary field. Biologists use it to understand how our bodies regulate temperature and blood sugar. Economists model financial systems with it. And of course, engineers use it for the really flashy stuff: keeping a billion-dollar satellite pointed at the right star, guiding a self-driving car through traffic, or enabling a robot to perform delicate surgery. It’s the “magic” that allows us to build systems that perform well and reliably, even when their individual parts aren’t perfect.
The Four Magic Words: Measure, Compare, Compute, Correct
So, how does it all work? While the math can get advanced, the core logic of almost any control system can be broken down into four simple functions. Think of them as the four magic words of automation.
Let’s go back to our shower analogy. You want the water to be the perfect temperature.
- Measure: First, you need to know what the system is currently doing. You stick your hand in the stream to feel the water’s temperature. This is the job of a sensor. In a car’s cruise control, it’s a speed sensor. In a thermostat, it’s a thermometer.
- Compare: Next, you compare what you measured to what you want. Is the water too cold? Too hot? The difference between your desired temperature (the reference) and the actual temperature (the measurement) is the error. This is the most important piece of information in the loop. A big error means you need to make a big change. A small error means you’re getting close.
- Compute: Now your brain—the controller—has to decide what to do about that error. If the water is way too cold, your brain computes that you need to turn the hot tap a lot. If it’s just a little too warm, you only need a tiny adjustment on the cold tap. This is the “thinking” part of the process.
- Correct: Finally, your brain sends a signal to your hand—the actuator—to make the change. Your hand turns the knob, changing the flow of water. This action is the control input, and it directly affects the system, hopefully driving the error to zero.
And then the loop begins again. You measure the new temperature, compare it, compute a new correction, and act. This cycle of Measure, Compare, Compute, Correct continues until the water is just right—until the error is zero. Every closed-loop control system on the planet, from the simplest to the most complex, follows this fundamental pattern.
Our Quest: Building a Robot with a Mind of Its Own
Reading about theory is one thing, but building it is another. That’s why this series is built around a single, exciting project: constructing a four-wheel mecanum robot from scratch.
What’s a mecanum robot? It’s a special type of robot that uses uniquely designed wheels with rollers fixed at a 45-degree angle. By spinning these wheels in different combinations, the robot can move not just forward and backward, but also slide directly left and right (a move called “strafing”), and even spin and drive in a curve at the same time. It’s an amazing platform for learning about motion control.
Our mission, over the course of this series, will be to give our robot a brain. We will teach it how to:
- Measure how fast each of its four wheels is actually spinning using sensors called encoders.
- Compare those speeds to the speeds we want them to have to achieve a certain movement.
- Compute the necessary corrections using the most common and powerful tool in the control engineer’s toolkit: the PID controller.
- Correct the motor power to make the robot move smoothly and precisely in any direction we command.
By the end, you won’t just understand what a feedback loop is—you’ll have built one, tuned it, and watched it bring your own creation to life. You’ll have turned a collection of wires, motors, and plastic into a smart machine that actively fights against errors to achieve its goal.
You’ll have become a control systems engineer.
So, grab your thinking cap, and get ready. In the next part, we’ll take a closer look at the two fundamental types of control: the “trusting” open-loop system and the “verifying” closed-loop system.
